What Is DMX-512? A Beginner's Guide

The 30-second version

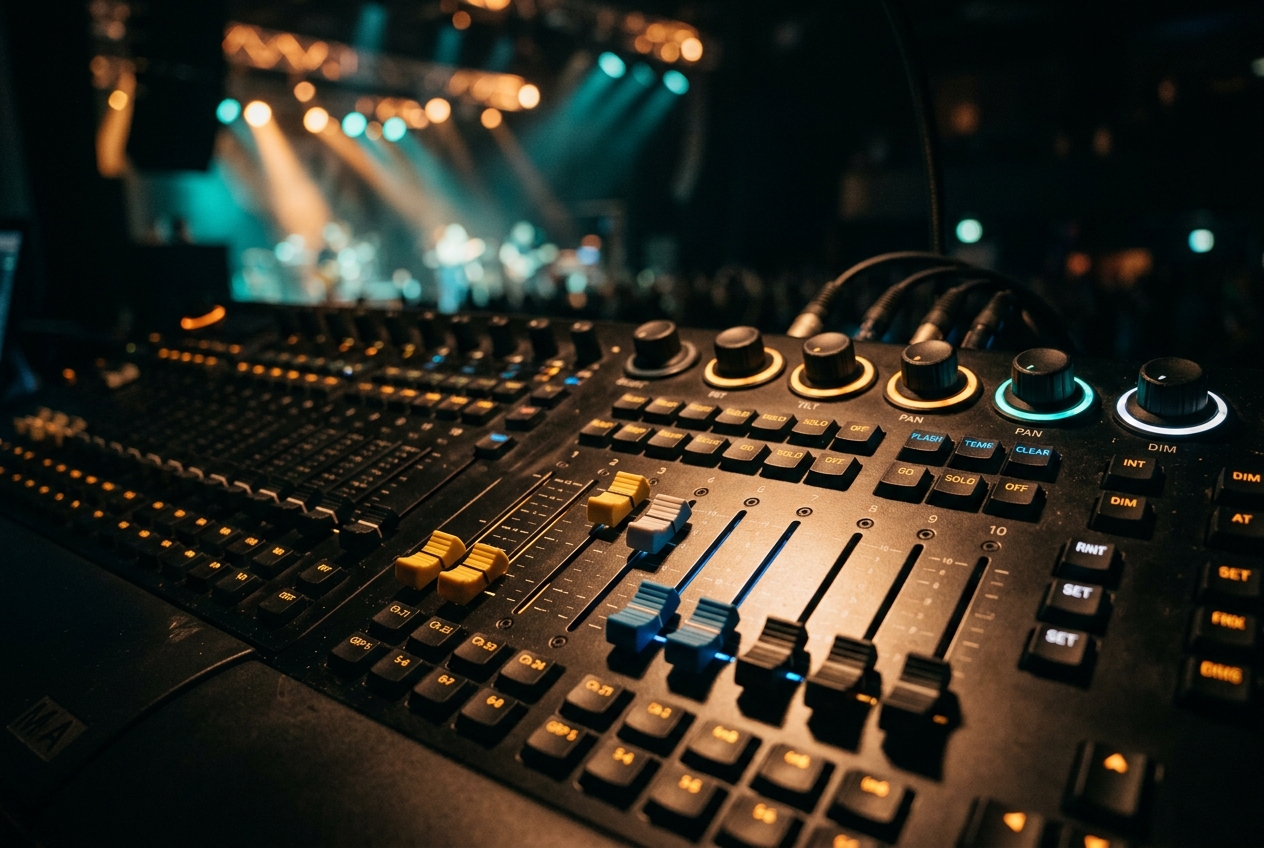

DMX-512 is a one-way digital signal that runs from your lighting console out to your fixtures. A single DMX line is called a universe, and every universe carries exactly 512 channels. Each channel holds a single 8-bit value between 0 and 255. A dimmer channel at 0 is off and at 255 is full; a colour channel might mean "how much red". The console refreshes every channel roughly 44 times a second, which is why fades and chases look smooth.

A little history

DMX-512 was introduced by USITT in 1986 to replace the incompatible analog control systems every manufacturer used at the time. It was revised in 1990 and again as the current ANSI standard E1.11 (DMX512-A). Nearly 40 years later it is still the backbone of virtually every lighting rig on earth — from a school stage to a stadium tour — because it is simple, robust and universal.

Channels, values and addresses

Fixtures don't use just one channel — a modern moving head might use 20 or more (pan, tilt, dimmer, red, green, blue, gobo, focus, and so on). The fixture's DMX footprint is how many consecutive channels it occupies. You set a start address on the fixture, and it then reads that many channels in order.

For example, if a fixture with a 12-channel footprint is set to start address 1, it listens to channels 1–12. The next identical fixture would start at 13, then 25, and so on. Overlapping addresses is the single most common beginner mistake — two fixtures at the same address will always do exactly the same thing, which is occasionally useful and usually a bug.

8-bit vs 16-bit

Some attributes — especially pan and tilt on moving heads — need finer resolution than 256 steps. These use two channels together (a "coarse" and a "fine" channel) to give 65,536 steps, so movement looks smooth rather than steppy. That's why a 16-bit moving head eats channels quickly.

What is a universe?

Because a universe is capped at 512 channels, you can only fit so many fixtures on one line. Twenty fixtures at 20 channels each already fills 400 channels. Big rigs therefore use multiple universes, and that's where network protocols like Art-Net and sACN come in — they carry many universes over a single Ethernet cable. See how many universes you need.

How DMX is wired

• Daisy chain: DMX runs fixture-to-fixture in a chain — out of one and into the next. It is never wired in a star or a ring.
• 5-pin or 3-pin XLR: the standard connectors. Many fixtures use 3-pin, but 5-pin is the official spec; adaptors are common.
• Termination: the last fixture in a chain should have a 120-ohm terminator to prevent signal reflections that cause random flicker.
• 32 devices per line: the electrical limit before you need a DMX splitter/buffer.
• Cable matters: use proper 120-ohm DMX cable, not microphone cable — mic cable causes intermittent, maddening faults.

Common beginner mistakes

• Two fixtures sharing an address by accident.
• Forgetting the terminator on long runs (flicker that "comes and goes").
• Patching a fixture in the wrong mode, so the channels don't line up.
• Daisy-chaining more than 32 units without a splitter.

Where DMXpressions fits

DMXpressions is a browser-based console that speaks DMX-512 over Art-Net and sACN, plus USB-DMX interfaces. You patch fixtures from a profile library, set their addresses, and the console handles the channel maths for you — then previews the whole rig in a real-time 3D visualizer before you ever touch the real lights.
